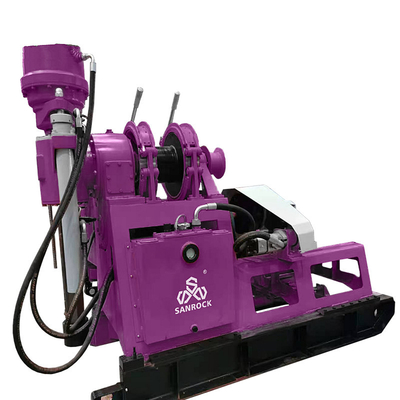

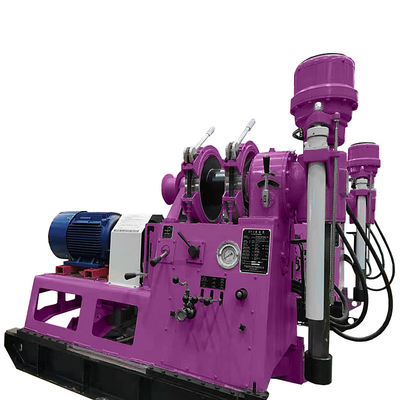

The XY-2 Portable Core Drilling Rig is a lightweight and versatile exploration equipment designed for geological survey, mineral exploration, and environmental investigation. Featuring a compact modular design, this rig excels in field operations with its easy transportation and rapid assembly capabilities.
Equipped with a 33KW diesel engine, Its vertical spindle-type structure ensures stable operation across various geological formations, from soft sediments to medium-hard rock layers. The optimized hydraulic system enables precise core sampling while maintaining drilling efficiency of 1-4 meters per hour.
Ideal for mineral prospecting, geotechnical engineering, and scientific research in remote locations, the XY-2 rig combines rugged reliability with user-friendly operation, making it a preferred choice for both short-term exploration projects and long-term field campaigns.
The drilling rig has many (8 gears) speed series and a reasonable speed range. And the low-speed torque is relatively large and has a wide range of applications.
The drilling rig is small in size, light in weight and has good disassembly. Its total weight without the power machine is only 950kg.It is easy to relocate and transport, especially suitable for working in mountainous areas and water network areas.
The value scale is simple, the indication is accurate, and the instrument has a long service life.
The drilling rig has fewer control handles, a reasonable layout, and flexible and reliable operation.
In addition to high-speed drilling, the drilling rig can also perform low-speed and large-diameter drilling.
Products Description
|
Drilling Capacity
|
Drill Rod AQ
|
560m
|
|
Drill Rod BQ
|
460m
|
|
Drill Rod NQ
|
350m
|
|
Rotation Angle of Spindle
|
0-90°
|
|
Spindle Speed
|
Positive
|
65, 114, 180, 248, 310, 538, 849, 1172 rpm
|
|
Negative
|
51, 242 rpm
|
|
Max. Rotary Tarque of Spindle
|
2760N·m
|
|
Spindle Stroke
|
600mm
|
|
I.D of Spindle
|
76mm
|
|
Oil Pump
|
SCB32/12 Double Gear Oil Pump
|
|
Power
|
Electric Motor
|
(22KW/1470rpm)
|
|
Diesel Engine
|
(30KW/1500rpm)
|
|
Max. Lifiting Capacity of Spindle
|
60KN
|
|
Max. Pressuring Force of Spindle
|
45KN
|
|
Dimensions
|
2150×900×1690mm
|
|
Steel Wire Diameter
|
14mm
|
|
Content of Winding Drum
|
45m
|
|
Max. Hoisting Forcce
|
30KN
|
|
Weight(Without Power Unit)
|
950kg
|
|
|
