An underground large-scale drilling rig is a heavy-duty mechanical system designed for excavation, tunneling, or resource extraction in subsurface environments.
Equipped with high-powered hydraulic or electric drive systems, it integrates high quality cutting tools, such as rotary drill heads or tunnel boring machines , capable of penetrating hard rock, soil, or mixed geological formations.
These rigs often feature modular designs for adaptability in confined spaces, real-time monitoring sensors for precision alignment, and automated control systems to optimize efficiency and safety.
The auger drill rod simultaneously transmits rotational energy downward while conveying excavated material upward through its helical flights. This mechanized process enables precise vertical/horizontal boring for applications including foundation piling, tunnel construction, utility installation, and mineral exploration. Modern rigs incorporate computerized monitoring systems to optimize rotational speed, feed pressure, and alignment control, ensuring operational efficiency while minimizing ground disturbance in urban or environmentally sensitive areas.
Technical Precision
Integrates real-time monitoring systems for accurate depth, angle, and force control.
Compatible with modern tunneling methods (e.g., NATM, TBM).

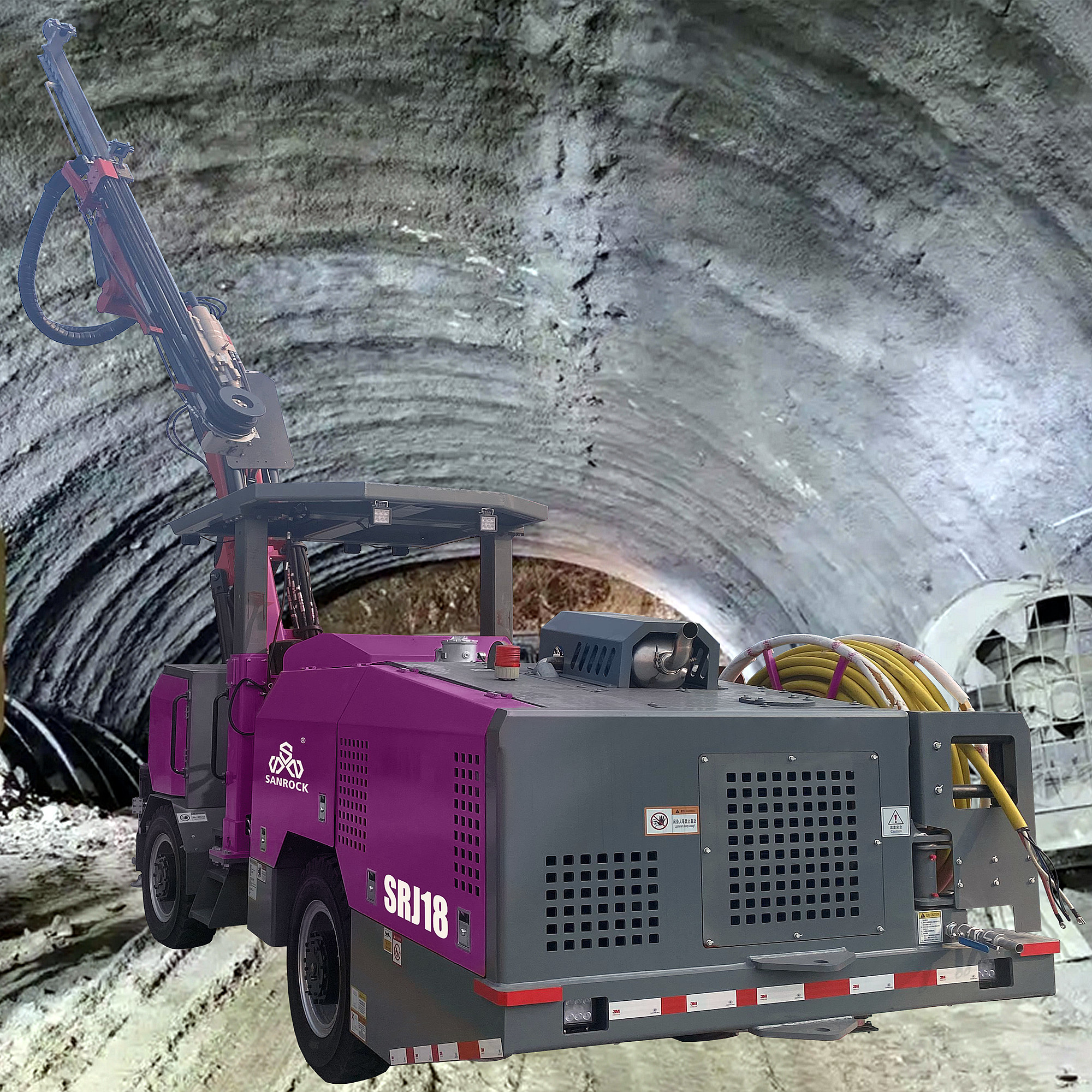

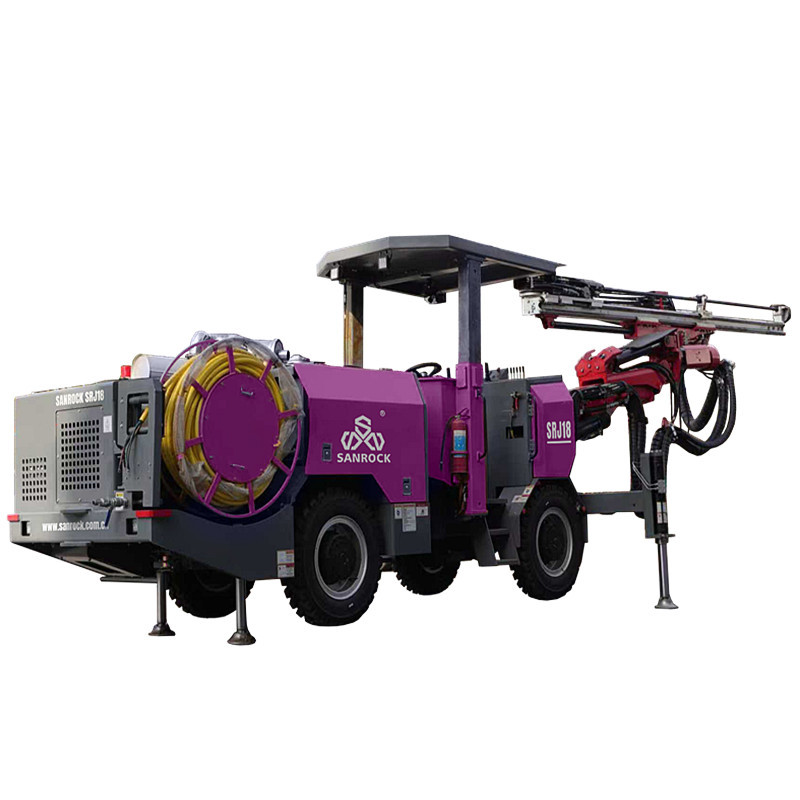

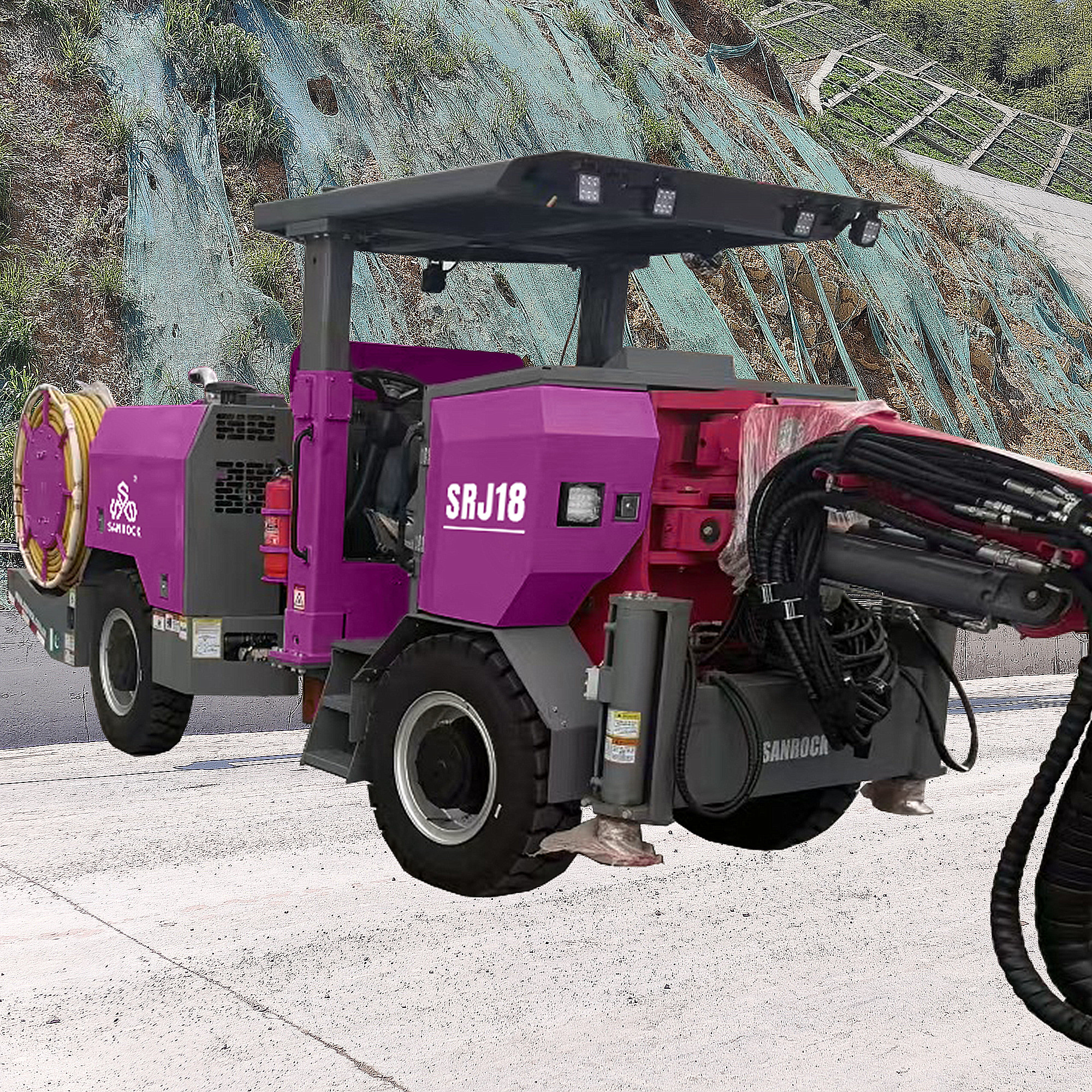

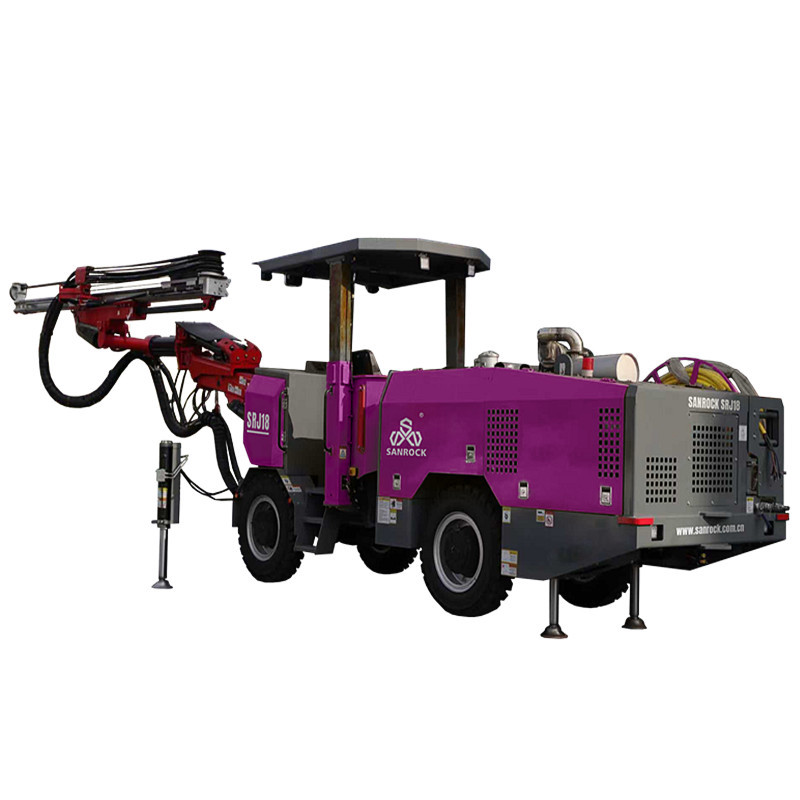

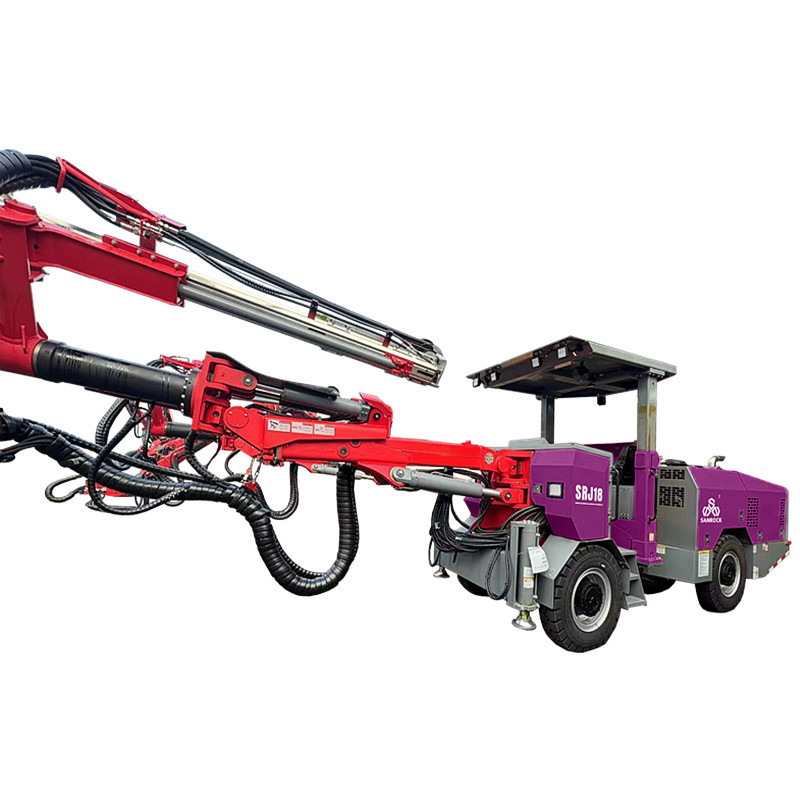

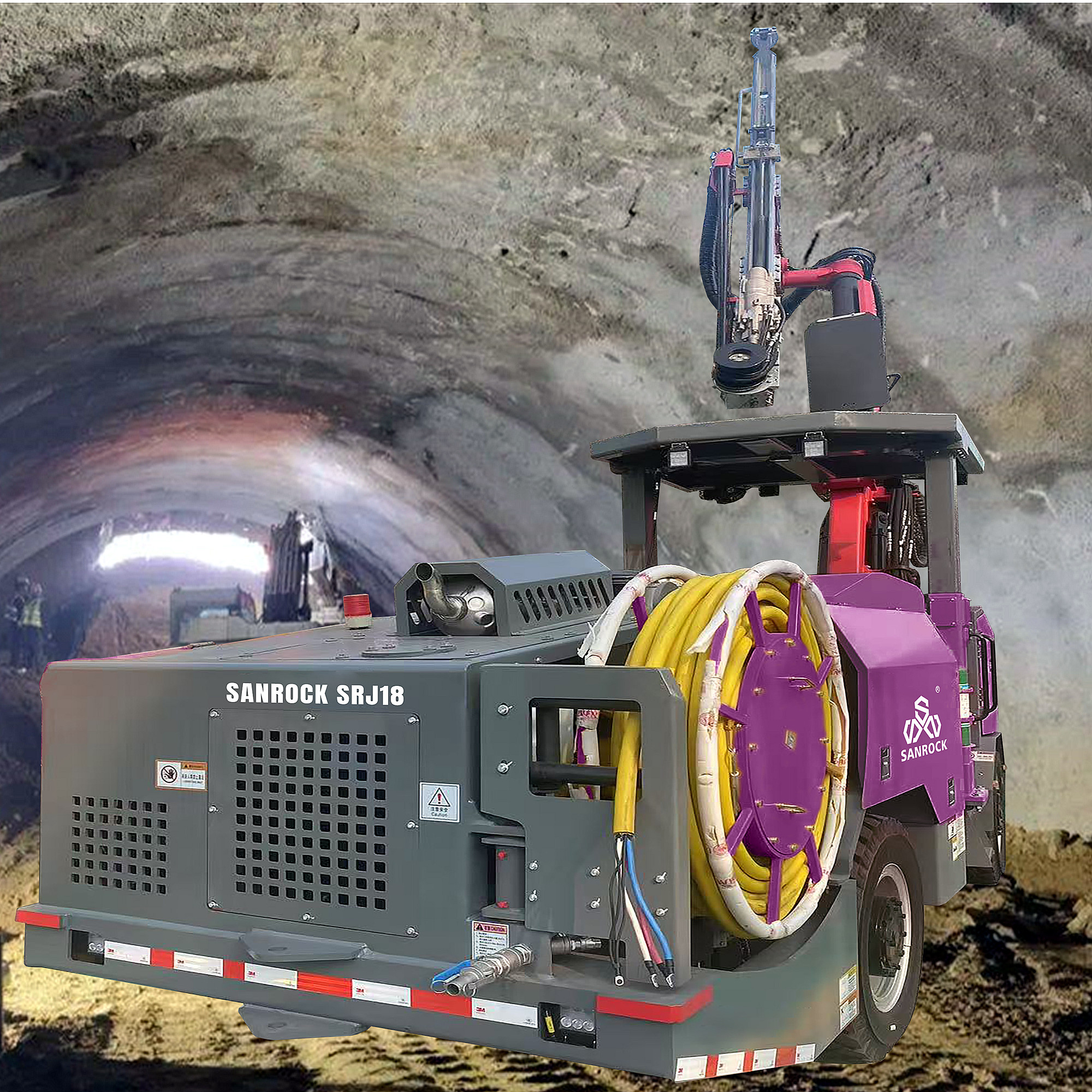

SANROCK SRJ18 Underground Jumbo Drilling Rig Scope of application One-boom face drilling rig for medium sized underground drifts,
with coverage area 7-35m².
Main benefits
> Optimized: for small to medium size tunnels and drifts down to 2.4 m widex2.9 m high,
up to 6 m widex6 m high.
>Economical and efficient: with automatic drilling, automatic return and anti-jamming functions increased the service life of drilling tools.
> Intelligent: with function of real-time monitoring and evaluation of construction conditions by digital recording data of the number and depth of holes.
>Safe and simple operation: equipped with automatic diagnosis and voice alarm system. High popularity: and good after-sales service support.
Products Description
|
Product name:jumbo drilling rig
|
|
|
Model
|
SRJ18
|
|
Maximum Coverage Area(H*W)
|
2.9*2.4m
|
|
Minimum Coverage Area(H*W)
|
6.3*6.5m
|
|
Overall Dimension(L*W*H)
|
11700*1800*2100/2900mm
|
|
Weight
|
13.6T
|
|
Turning Radio Outer/Inner
|
5600/3150mm
|
|
Rock Drill Range
|
Ф41-76mm
|
|
Rock Drill Power
|
18kw
|
|
Rock Drill Rate
|
60Hz
|
|
Drill Rod
|
T38-H35-R32-4305mm
|
|
Hole Depth
|
4000mm
|
|
Diesel Engine
|
Yuchai 66kw
|
|
Main Electric Motor
|
55kw
|
|
Total Installed Power
|
62kw
|
|
|
|
Rock drill
|
|
|
Shank
|
T38
|
|
Drill range
|
41mm-76mm
|
|
Reaming range
|
76mm-4127mm
|
|
Height over drill centre
|
95mm
|
|
Length without shank
|
1008mm
|
|
Impact power
|
18kW
|
|
Impact rate
|
60Hz
|
|
Rated hydraulic pressure
|
210bar
|
|
Maximum hydraulic pressure
|
230bar
|
|
Rotation system
|
Separate rotation
|
|
Rotation speed
|
0~215rpm
|
|
Rotation torque
|
max 1000Nm
|
|
|
