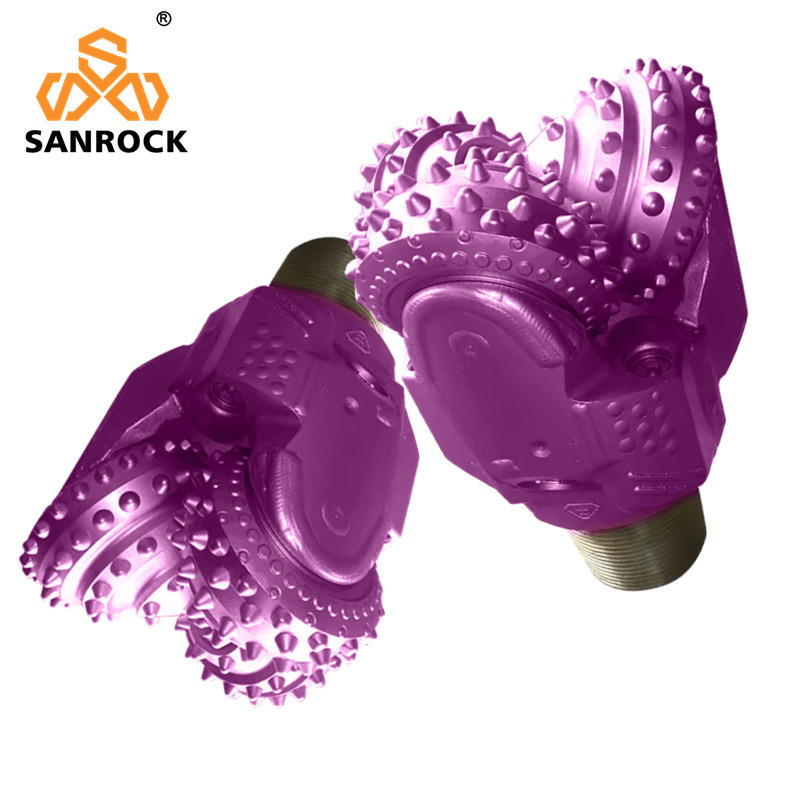

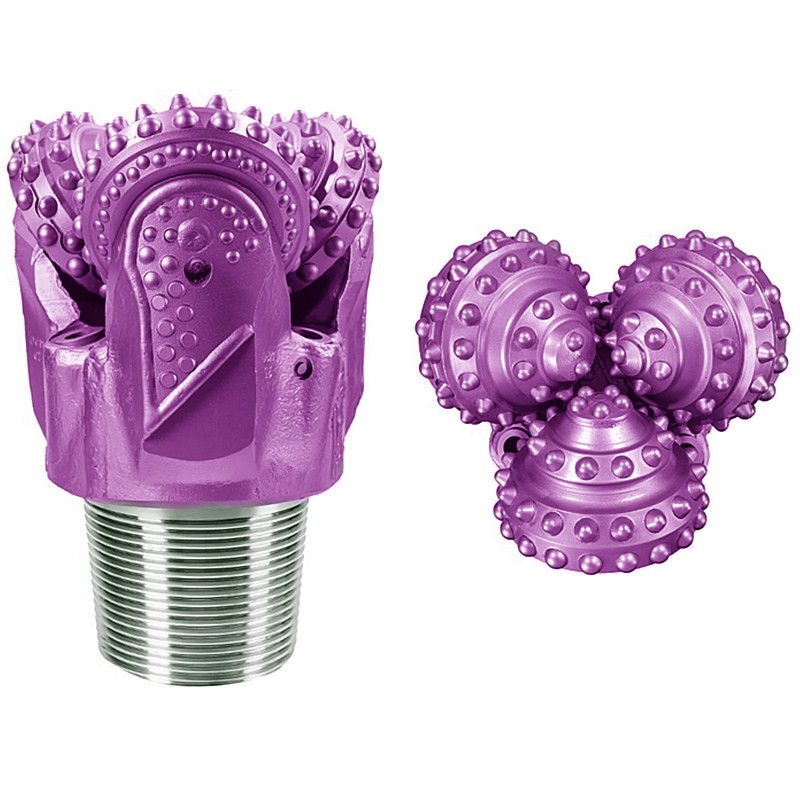

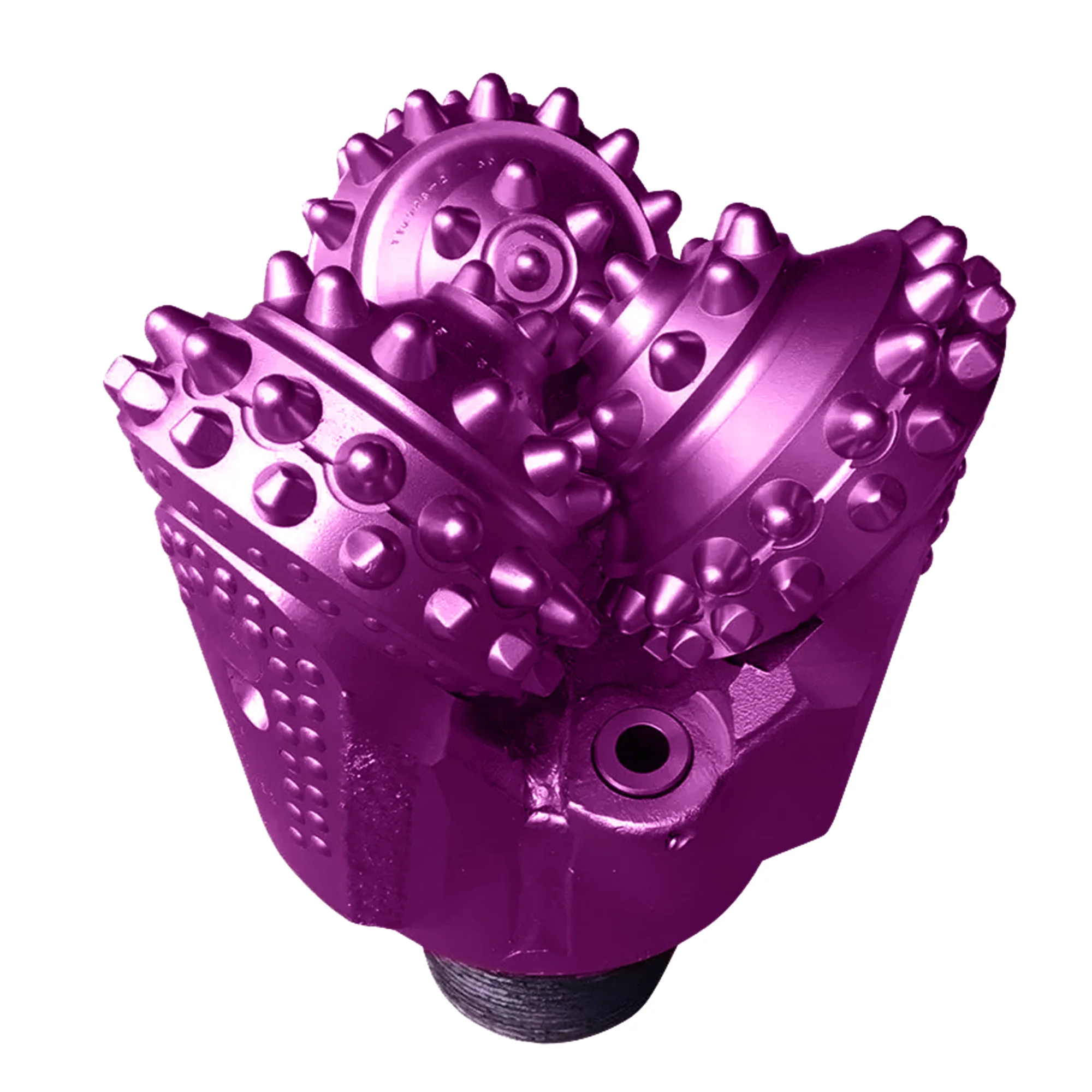

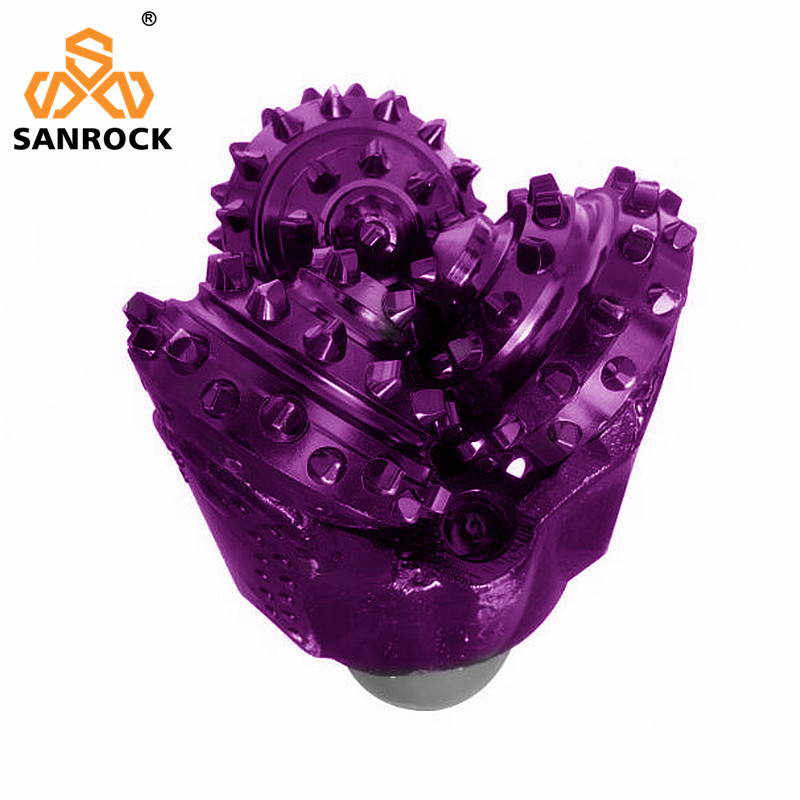

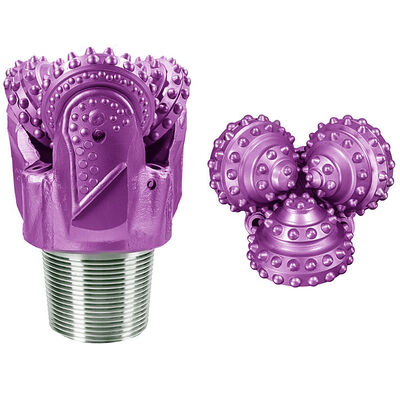

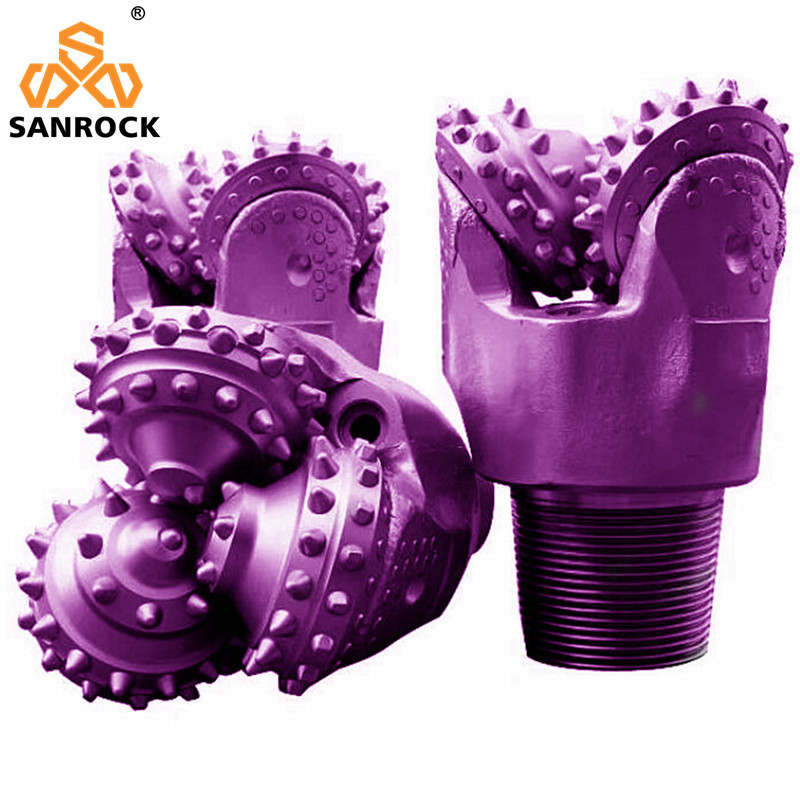

Tricone Rock Bit Oilfield Drilling Tools Tungsten Carbide Roller Cone Drill Bit

Applications of Roller Cone Bits

Roller cone bits are predominantly deployed in rotary drilling operations across

multiple industries. In oil and gas exploration, they drill through sedimentary formations

(shale, limestone, sandstone) for wellbores, excelling in vertical and directional drilling up

to intermediate depths. The mining sector utilizes them for blast hole drilling in open-pitoperations, penetrating coal, iron ore, and hard rock layers. Their adaptability extends to

geothermal well construction and water well drilling, where they handle mixed formations

with varying abrasiveness.

Specialized designs address specific challenges: steel-tooth variants prioritize rapid penetrationin soft-to-medium strata (clay, unconsolidated sands), while tungsten-carbide-insert models

dominate abrasive/hard rock environments (quartzite, granite). Sealed bearing systems enable

use in high-pressure/high-temperature (HPHT) reservoirs, while compact designs serve coring

operations and shallow excavation projects. Their versatility, balanced cost-efficiency, and

compatibility with standard rigs make them fundamental tools for subsurface resource access

and geological investigation.

Products Description

Notes for the use of roller cone bits:
1 .Before the drill bit is down, it is necessary to confirm that the bottom of the well is clean, free of grit, and no metal falling.
2. Check if the thread connection screw of the roller cone bit is intact and the nozzle is installed properly.
3. Run in hole needs to be stable, avoid stress and prevent drilling.
4. The last joint needs a large displacement to start the rotary table and keep reaming to bottom of the well., fully wash the well to prevent the debris from clogging the nozzle.
5. The shape of the bottom hole should be lightly pressed and slowly turned into contact with the bottom of the well, smalldrilling pressure, low speed, large displacement, small torque, and the speed is 40~60 rev / min, at least 30 minutes.
6. Determine the weight on bit and speed in combination with the actual conditions of the formation.
7. During drilling ahead, the operation should be smooth, drill feeding should be uniform, it is strictly forbidden to lift and release the drill sharply,drill string not well braked and drill string free fall.
8. If it is found that the drill bit stops making progress, the pump pressure increases and decreases obviously, the rate of penetration is suddenly decreased, and the torque is increased, lift the drill to check without delay.
