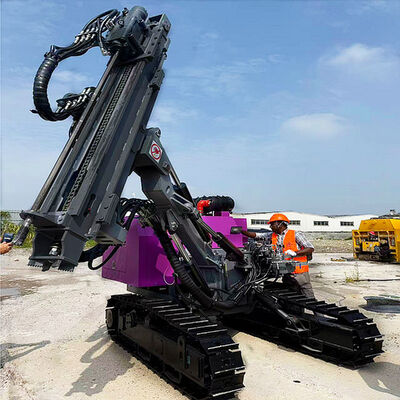

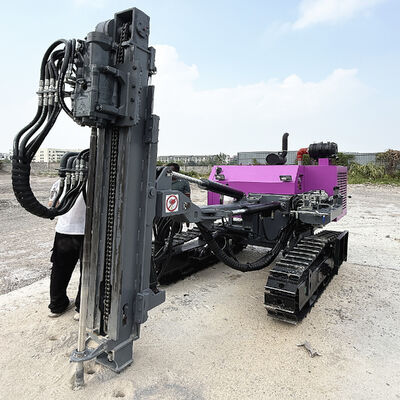

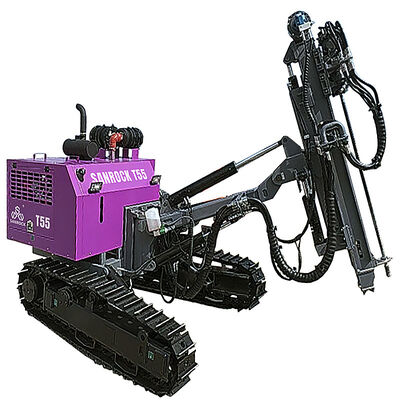

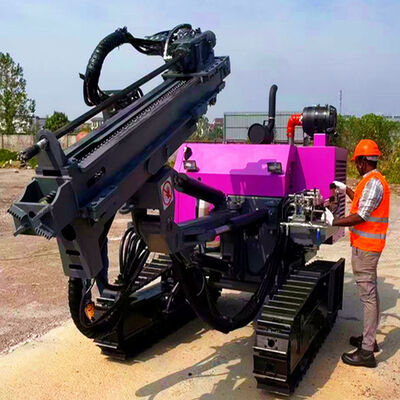

The top hammer drilling rig is an efficient and flexible rock drilling equipment, widely used in mining, construction, geological exploration and infrastructure construction and other fields. This equipment is usually driven by a hydraulic power system and adopts the principle of top hammer impact.
The hydraulic drilling rig is engineered for robust performance in harsh mining environments, featuring an intelligent control system that optimizes drilling parameters (e.g., speed, torque, and alignment) based on real-time geological data. Enhanced safety protocols, such as collision avoidance and emergency shutdowns, ensure operator protection. Ideal for deep-hole drilling, exploration, or tunnel construction, this crawler drilling rig maximizes productivity, minimizes human error, and adapts to complex terrains, making it a pivotal solution for modern mining operations.
Feature:
Small top hammer drilling rig have higher mobility and ease of operation. Its maintenance cost is relatively low, and its energy consumption is moderate. While ensuring the drilling efficiency, it reduces operating expenses.
With an adjustable track tensioning system and reinforced undercarriage, the rig maintains exceptional stability while traversing inclines up to 30° and operating on gradients as steep as 15°.
Hydraulic DTH drilling rig is a versatile rock drilling system composed of independently operated components including a high-pressure air compressor, hydraulic power unit, drilling mast, and DTH hammer. Its modular design allows easy transportation and quick reassembly in challenging terrains, making it ideal for remote mining, quarrying, and construction applications. The rig delivers powerful percussive energy through pneumatic or hydraulic mechanisms to achieve efficient hole drilling in hard rock formations.
Products Description
|
Product name
|
Drilling Rig
|
|
Power Parameters
|
|
Engine Model
|
4BTA3.9-C80-II
|
|
Rated Power
|
60kw at 2200rpm
|
|
Moving Parameters
|
|
Movement Speed
|
2.5km/h,3km/h
|
|
Climbing ability
|
30°
|
|
Machine parameters
|
|
Dimension
|
3800*1910*2200mm
|
|
Weight
|
5000kg
|
|
Clearance
|
260mm
|
|
Compressor Parameter
|
|
Air consumption
|
1.8-5 m3/min
|
|
Pressure
|
5 bar
|
|
Drilling parameters
|
|
|
Diameters
|
40-100mm
|
|
Depth
|
20m
|
|
Rock Drill
|
|
Weight
|
120kg
|
|
Length(without shank adapter)
|
655mm
|
|
width
|
299mm
|
|
height
|
204mm
|
|
Impact power
|
12.5kw
|
|
Max pressure
|
160Mpa
|
|
Flow rate
|
80L/min
|
|
Impact frequency
|
63HZ
|
|
Max Impact energy
|
200J
|
|
|
Company Profile
1.What can you buy from us?
DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
