Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale

1set/conjuntos por mês
MOQ
negotiable
preço
Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Nome do produto: Equipamento de Perfuração Top Hammer DTH
nome: Instalação de perfuração hidráulica
Tipo de energia: Diesel
Poder (W): 60 kW a 2.200 rpm
Diâmetro de perfuração: 40-100mm
Profundidade de perfuração: 20m
Consumo de ar: 1,8-5 m3/min
Velocidade de caminhada: 2,5 km/h-3 km/h
Uso: Perfuração de rocha, perfuração de buracos, perfuração de rocha dura
Pressão: 5 bar
Capacidade de classificação: 30 °
Aplicativo: Perfuração de rocha, ou, minha
Tipo de máquina: Equipamento de perfuração
Tipo: Rata de perfuração rotativa
Dimensão (C*L*A): 3800*1910*2200mm
Peso: 5000 kg
Recurso: Eficiência de furo alta, controlo hidráulico, preço competitivo
Destacar:

portable top hammer drilling rig

,

small mining blasting drill machine

,

DTH drilling rig with warranty

Informação básica
Lugar de origem: Zhejiang, China
Marca: SANROCK
Certificação: CE ISO 9001:2015
Número do modelo: T55
Condições de Pagamento e Envio
Detalhes da embalagem: Pacote nu para máquinas, pacote de caixas de madeira para peças de reposição ou demanda de clientes.
Tempo de entrega: 15-25 dias
Termos de pagamento: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Habilidade da fonte: 5000set/conjuntos por mês
Descrição de produto

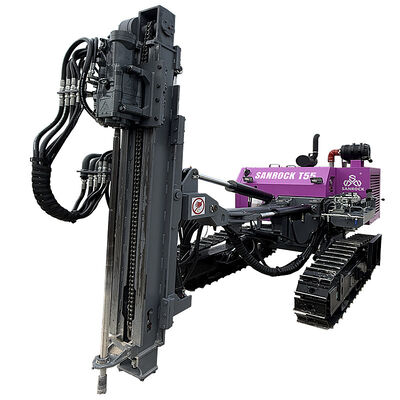

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 0

Top hammer drill rigs are a reliable and efficient choice for drilling operations,

offering a combination of high efficiency, adaptability, accuracy, durability,

and versatility that is hard to match in the industry.

These drill rigs offer excellent adaptability. They can be used in a wide rangeof geological conditions, from relatively soft rocks to extremely hard and abrasive ones.

The ability to adjust the drilling parameters, such as the impact force, rotation speed,

and feed rate, according to the specific characteristics of the rock, ensures optimal

performance regardless of the challenging environment.

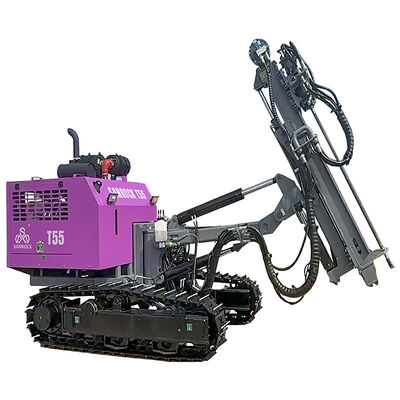

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 1

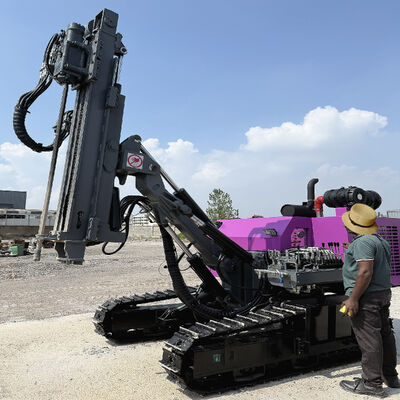

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 2Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 3



Feature:

These drill rigs offer excellent adaptability. They can be used in a wide range

of geological conditions, from relatively soft rocks to extremely hard and abrasive

ones. The ability to adjust the drilling parameters, such as the impact force, rotationspeed, and feed rate, according to the specific characteristics of the rock, ensures

optimal performance regardless of the challenging environment.

With an adjustable track tensioning system and reinforced undercarriage, the rig maintains

exceptional stability while traversing inclines up to 30° and operating on gradients as steep as 15°.

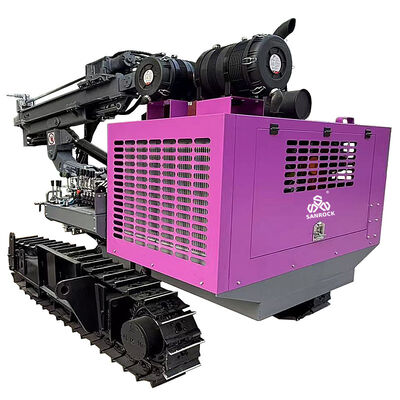

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 4Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 5Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 6



Products Description

Product name
Drilling Rig
Power Parameters
Engine Model
4BTA3.9-C80-II
Rated Power
60kw at 2200rpm
Moving Parameters
Movement Speed
2.5km/h,3km/h
Climbing ability
30°
Machine parameters
Dimension
3800*1910*2200mm
Weight
5000kg
Clearance
260mm
Compressor Parameter
Air consumption
1.8-5 m3/min
Pressure
5 bar
Drilling parameters

Diameters
40-100mm
Depth
20m
Rock Drill
Weight
120kg
Length(without shank adapter)
655mm
width
299mm
height
204mm
Impact power
12.5kw
Max pressure
160Mpa
Flow rate
80L/min
Impact frequency
63HZ
Max Impact energy
200J

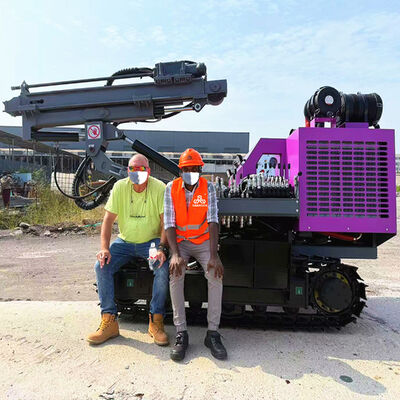

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 7

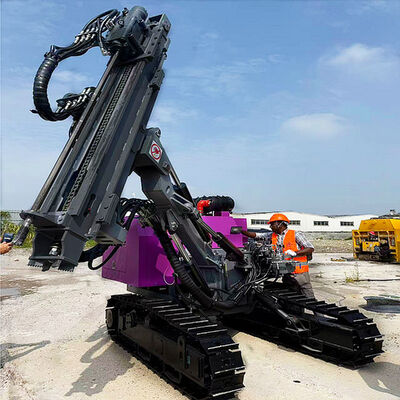

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 8

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 9

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 10

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 11

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 12

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 13Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 14





Company Profile

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 15

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 16

Top Hammer Drilling Rig Mining Blasting Drill Machine Portable Small Drilling Rig for Sale 17

1.What can you buy from us?

DTH drilling rig,Integrated DTH DTH drilling rig ,core drilling rig,highway pile driver,solar pile driver ,anchor pile driver,rotary drill rig ,Top Hammer drill rig,Underground jumbo drill rig ,DTH hammer,screw air compressor,screw air compressor,piston air compressor,pneumatic rock drill ,drill rod,drill bit,PDC drill bit,top hammer drill bit,tricone bit ,spare parts.



2.How can I make payment?

A:You can pay by credit card, TT, Western Union, LC etc.



3.How is the shipment? How long dose it take?

A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.



4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
