Casa /Produtos/Instalação de perfuração de núcleo/Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

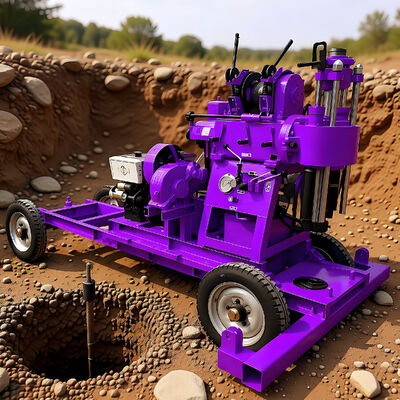

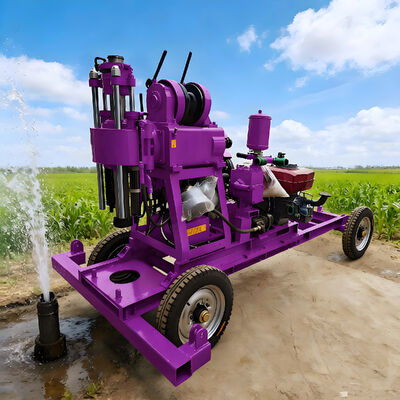

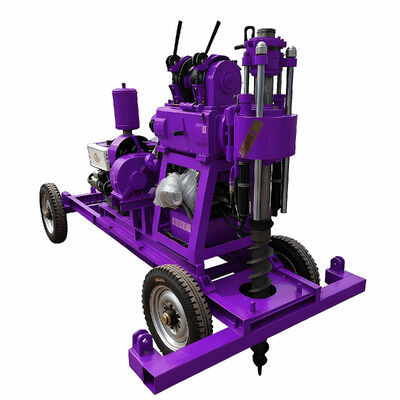

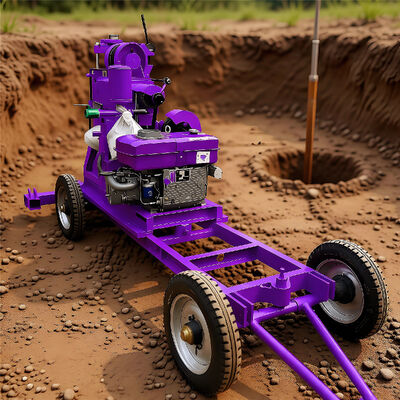

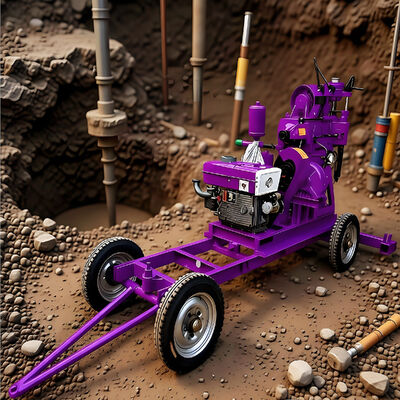

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig

1set/conjuntos por mês
MOQ
negotiable
preço
Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig
Características Galeria Descrição de produto Peça umas citações
Características
Especificações
Nome do produto: Máquina de perfuração de núcleo hidráulico
Nome: Estação de perfuração de poços,estação de perfuração de núcleo
tipo: Instalação de perfuração de núcleo
Uso: Amostra do poço de água.
Recurso: Eficiência de perfuração elevada, portátil, leve
Aplicativo: Exploração Geological
Poder: 16.2kw
Velocidade nominal: 2200r/min
Diâmetro de perfuração: 75-325mm
Profundidade de perfuração: 200m
Diâmetro de haste da broca: 42-60 mm
Dimensão (l*w*h): 2700*900*1500 mm
Serviço pós-venda fornecido: Suporte on-line
Peso máximo de elevação do eixo vertical: 25KN
Pressão máxima de alimentação do eixo vertical:: 15kn
Torque máximo de saída do eixo vertical: 15kn
Velocidade do eixo vertical (4ª marcha): 71.142.310.620 rpm
Curso vertical do eixo: 450 mm
Ângulo de mergulho do furo: 90-75°
Diâmetro do buraco final: 75mm
Tamanho de pacote único: 2150×880×1560 milímetros
Peso Bruto Único: 760 kg
Destacar:

hydraulic core drilling rig 100m

,

mining core drilling rig 200m

,

exploration drilling equipment hydraulic
Informação básica
Lugar de origem: Zhejiang, China
Marca: SANROCK
Certificação: CE ISO 9001:2015
Número do modelo: SRC200
Condições de Pagamento e Envio
Detalhes da embalagem: Pacote nu para máquinas, pacote de caixa de madeira para peças de reposição ou demanda do cliente.
Tempo de entrega: 15-25 dias
Termos de pagamento: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Habilidade da fonte: 5000set/conjuntos por mês
Descrição de produto

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 0

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 1

Mining Exploration Geological Core Drilling Rig – 200m Depth
This heavy-duty core drilling rig is purpose-built for underground and open-pit mining exploration, geological surveying, and mineral resource evaluation, with a maximum drilling depth of 200 meters.

Engineered to withstand the harsh conditions of mine sites, the rig features a reinforced steel frame, dust- and moisture-resistant components, and a robust hydraulic system that ensures reliable operation in confined or rugged environments.
Equipped with a high-torque rotary head and precise feed control, it supports diamond core drilling (NQ, HQ, BQ) and delivers high-quality, undisturbed core samples for accurate geological analysis.

The compact modular design allows for easy transport through mine tunnels and quick setup at drilling locations. Safety features such as overload protection and emergency shut-off are integrated for operator protection.
Ideal for mineral prospecting, grade control, and geotechnical investigation in mining operations, this rig combines field-proven durability, efficient coring performance, and a 200-meter depth capability tailored to the demands of the mining industry.

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 2

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 3

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 5

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 6

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 7

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 8

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 9

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 10



Products Description

Brand Name:SANROCK
Product name :Core Drilling Rig

Name: Core Drilling Machine
Power Type :Diesel

Feature :High Drilling Efficiency,portable,Light Weight
Packaging Details:packing according to customer's requirement.

Model number:Diesel engine
Rated speed:2200r/min
Power:16.2KW
Borehole depth:200M
Pipe diameter:50mm
Opening diameter:75-325mm
Final hole diameter:75mm
Hole dip Angle:90-75°
Gyrator
Vertical shaft speed(4th gear):71,142,310,620 r/min
Vertical shaft travel:450mm
Maximum output torque of vertical shaft:15KN
Maximum feed pressure of vertical shaft:15KN
Maximum lifting weight of vertical shaft:25KN
Single package size:2150×880×1560 mm
Single gross weight:760 kg

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 11

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 12

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 13

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 14

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 15

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 16

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 17

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 18

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 19

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 20

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 4

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 22

Core Drilling Rig Machine 100m 200m Hydraulic Exploration Drilling Equipment Mining Core Drilling Rig 23
