Name: Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver
Brand: Quzhou Sanrock Heavy Industry Machinery Co., Ltd.
SKU: SRP550A
Availability: InStock

Características Galeria Descrição de produto Peça umas citações

Características

Especificações

Nome do produto: Máquina de pilotar, pilotar, pilotar a parafuso

Nome: Motor hidráulico de pilhas,equipamento de pilhas

Aplicativo: Construção de fundações de engenharia

Recurso: Alta eficiência de perfuração, controlo hidráulico, alto desempenho

Poder: 73.5kW

diâmetro do furo: 90-160mm

Comprimento da haste: 3m

Diâmetro da haste: 60/64/76/89mm

Max. Torque de rotação: 7320 nm

Taxa da rotação: 0-140 rpm

baseAprovisionamento: 350mm

Força de elevação: 18kn

Força de alimentação: 8KN

Promover a compensação: 1250mm

Curso de Alimentação: 4105 mm

Largura da pista: 300 mm

Velocidade de caminhada: 20,5- 3 km/h

Dimensão (l*w*h): 6000*2150*2600 mm

Peso: 6600 QUILOGRAMAS

Destacar:

hydraulic pile driver machine with warranty

crawler pile driver for building foundation

precise depth pile drilling rig

Informação básica

Lugar de origem: Zhejiang, China

Marca: SANROCK

Certificação: CE ISO 9001:2015

Número do modelo: SRP550A

Documento: Pile Driver and Rotary Dril...ig.pdf

Condições de Pagamento e Envio

Detalhes da embalagem: Pacote nu para máquinas, pacote de caixa de madeira para peças de reposição ou demanda do cliente.

Tempo de entrega: 15 dias

Termos de pagamento: L/C,D/A,D/P,T/T,Western Union,MoneyGram

Habilidade da fonte: 5000set/conjuntos por mês

Galeria

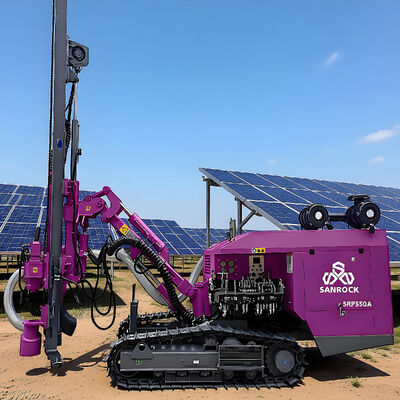

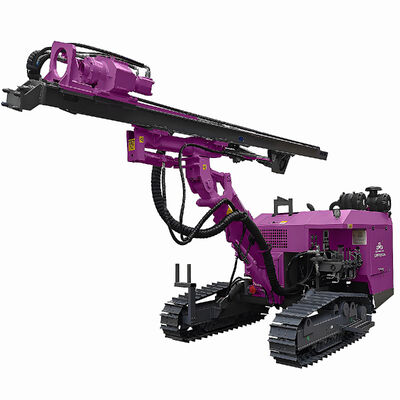

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver

Descrição de produto

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 0

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 1

This multi-functional anchor drilling machine is a high-performance hydraulic drilling equipment specially developed for scenarios such as slope support, foundation anchoring, photovoltaic pile foundation, tunnel engineering, and soil and rock reinforcement. The entire machine is equipped with a 73.5KW high-power power system, with sufficient power reserve and stable output torque. It can easily handle complex construction conditions such as soil layers, weathered rock layers, and mixed strata, balancing efficient drilling and stable operation performance. It is a mainstream and popular model in domestic infrastructure, geotechnical engineering, and mine support projects.

The core configuration of the equipment is an automatic drill pipe replacement system, which overturns the traditional manual pipe replacement mode. It eliminates the need for frequent manual disassembly and assembly of the drill pipe, significantly reducing the time for pipe replacement and effectively improving the overall construction efficiency. At the same time, it reduces the manual operation intensity and construction safety risks, and is suitable for long-term, continuous batch drilling operations. The equipment has high intelligence and automation levels, meeting the needs of overseas large-scale construction projects.
In terms of construction parameters, the equipment precisely adapts to the common construction specifications of the project, with drill hole diameters ranging from 90 to 160mm, capable of meeting the construction requirements of various hole diameters such as anchor bolt holes, anchor cable holes, foundation reinforcement holes, and photovoltaic pile foundation holes. It is suitable for the majority of anchoring support and micro-pile foundation drilling scenarios. The standard 3-meter standard extended drill pipe is equipped, with a longer single drill pipe operation range, reducing the number of connection rods and further improving the drilling continuity, reducing drilling deviation, and ensuring the accuracy and quality of the hole formation.
The entire machine adopts an integrated hydraulic control system, with stable power output, adjustable drilling speed and thrust, and can precisely adjust the parameters. It is less likely to encounter problems such as stuck drill pipes and misaligned holes in alternating soft and hard strata, resulting in regular hole formation and excellent anchoring effects. The machine has a compact structure and strong mobility, suitable for complex operation environments such as mountains, slopes, and narrow construction sites. It supports vertical, inclined, and horizontal multi-angle drilling, being multi-functional and highly versatile.
The equipment is made of high-quality materials, with mature processes, and its core components are wear-resistant and durable, with low failure rates, simple maintenance, and stable operation. It is suitable for overseas high-intensity and uninterrupted construction scenarios, with outstanding cost performance. It is widely applicable to various projects such as road and railway slope protection, foundation anchoring for high-rise buildings, mine tunnel support, photovoltaic power station pile foundation construction, tunnel surrounding rock reinforcement, and geological disaster treatment. It is the preferred efficient anchoring drilling equipment for overseas engineering contractors.

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 2

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 3

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 4

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 5

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 7

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 8

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 9

Products Description

Product Name Pile Driving Machine Application Foundation Construction Works Keywords Crawler Pile Drive Drill diameter 90-500mm Feature High Performance Max. Rotation Torque 7320nm Feeding Stroke 4105mm Rotation Rate 0-140rpm Groundclearance 350mm Walking speed(km/h) 2.5--3km/h
*Dimension(LWH)* *600021502600mm*
Weight 6600 kg

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 10

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 11

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 12

Company Profile

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 19

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 20

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 21

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 22

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 23

Hydraulic Pile Driver Machine Precise Depth Building Foundation Pile Drilling Rig Anchor Crawler Pile Driver 24

1.Do you provide design drawing and customization services for complete machines and drilling tools?
Please provide your technical specifications or project background details, and we are ready to develop a customized proposal based on your requirements.
This includes 2D and 3D design drawings , delivered in various formats including DWG, PDF, STEP, and IGES.
Our engineering team specializes in developing tailored solutions that meet your specific operational requirements, geological conditions, and performance objectives.
2.How can I make payment?
A:You can pay by credit card, TT, Western Union, LC etc.
3.How is the shipment? How long dose it take?
A: For large quantity or heavy products, we ship by sea shipping or land shipping. Shipping efficiency depends on country and city you want to ship to. For small and delicate products, we ship by DHL, UPS, Fedex or TNT. You can also appoint shipping method you like before we ship.
4.How is your quality control?
A: We have our own experienced QC. There will be strict inspection and testing for every order before shipping out.
